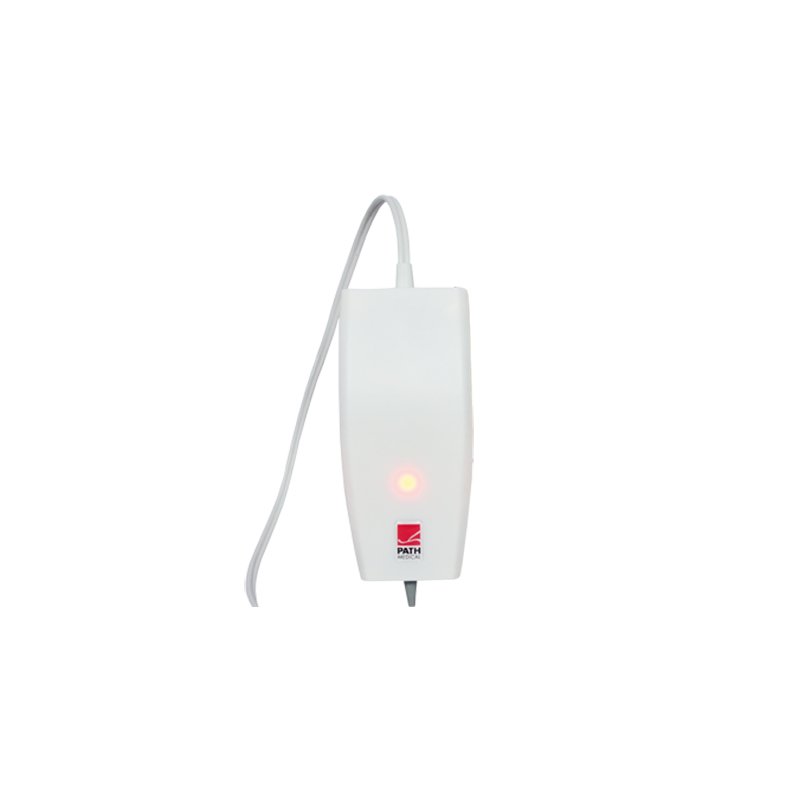

Screening Tympanometer

PATH nanoTymp

Product Code: 100948-SET

This compact tympanometer is an invaluable tool for the verification and diagnosis of middle ear pathologies in paediatric to adult patients. The test procedure is easy & fast, simply fit the probe, start the test and within seconds the test results will appear on the screen. With the supplied nanoTymp software, test results & patient data can be effortlessly printed or immediately transferred via PDF to an electronic medical record.

Simple USB connection: It‘s easy to connect nanoTymp via USB to your PC and operate it in the nanoTymp software. Unlike other Screening Tympanometers you can preview the left & right ear in real time and full colour printouts can be created in seconds.

Key Features:

  • Simple USB connection
  • Preview right and left ear in real time
  • Extra long probe cable
  • 226Hz probe tone
  • IPSI reflex frequencies 500 Hz, 1kHz, 2 kHz, 4 kHz, BBN
  • Customised protocols
  • NOAH module
  • Unlimited data storage (device dependant)
  • Manufacturer


  • Compliance

    • • IEC 60601-1
    • • EMC IEC 60601-1-2
    • • IEC 60645-5 Type 2 Tympanometer ANSI 3.39
    • • CE mark - Complies to EU Medical Device Directive

  • Dimensions

    • W+D+H: 150 x 72 x 55mm
    • Weight: approximately 170 g

    Want to know more?

    Please visit the manufacturer's website
    or download the product datasheet
