Diagnostic Tympanometer

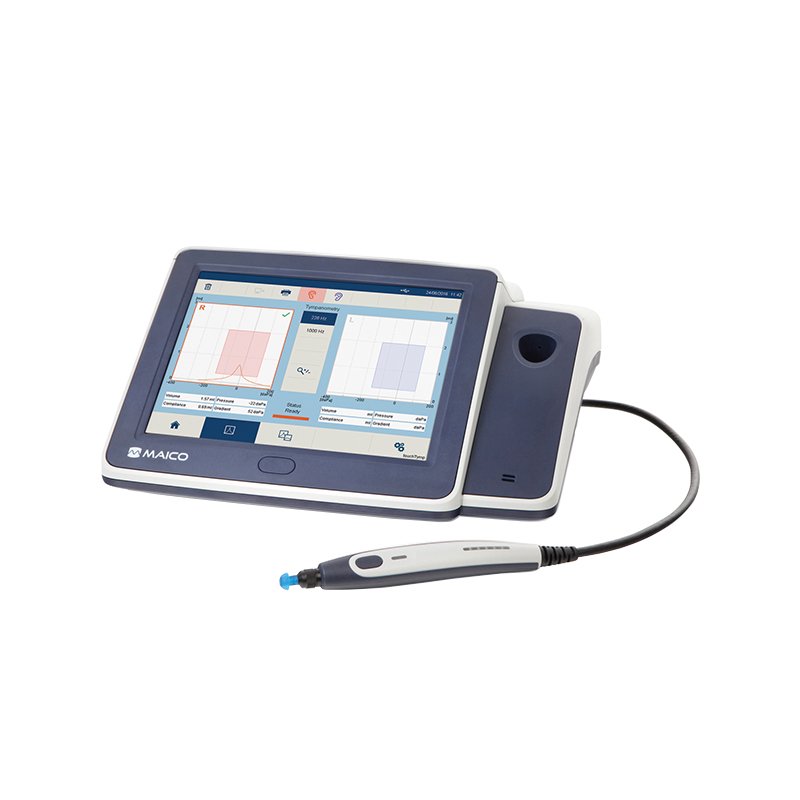

Maico touchTymp Diagnostic

Product Code: touchTymp Diagnostic

Our diagnostic touchTymp versions are just as intuitive and easy to use as the screening versions. For a more complete evaluation of the middle ear, they come with additional diagnostic functions. The touchTymp MI 34 and 36 feature a lightweight shoulder box for both screening and diagnostic purposes. The shoulder box can easily be clipped to your patient's top for controlled handling. Use the comprehensive standard protocols for immediate operation of all screening and diagnostic test processes: tympanometry with 226 Hz, tympanometry with automatic acoustic reflexes or at a fixed level, reflex decay measurements and Eustachian tube function testing (ETF). Additionally, the touchTymp MI 36 offers AC & BC audiometry.

Key Features:

  • High resolution and quick screen transitions
  • Full touch-based interface for intuitive handling
  • Diagnostic shoulder box probeProbe tones 226 Hz, 678 Hz, 800 Hz and optional 1 kHz
  • Acoustic reflex stimuli 500 Hz, 1 kHz, 2 kHz, 4 kHz, BB, HP, LP (ipsilateral and optional contralateral)
  • Reflex Decay test (ipsilateral and contralateral)ETF test for intact and perforated eardrumstouchTymp MI 36 includes AC & BC audiometryBuilt-in printer
  • Optional MAICO Sessions PC software connectable with OtoAccess® or Noah patient database for easy data management
Enquire

  • Manufacturer


  • Compliance

    • • IEC 60 601-1, Class B, Type II
    • • IEC 60 601-1-2
    • • IEC 60645-5
    According to the medical devices directive 92/43/EEC

  • Dimensions

    • W+D+H: 80 mm x 300 mm x 70 mm
    • Weight: 0.43 kg

    Want to know more?

    Please visit the manufacturer's website
    or download the product datasheet
