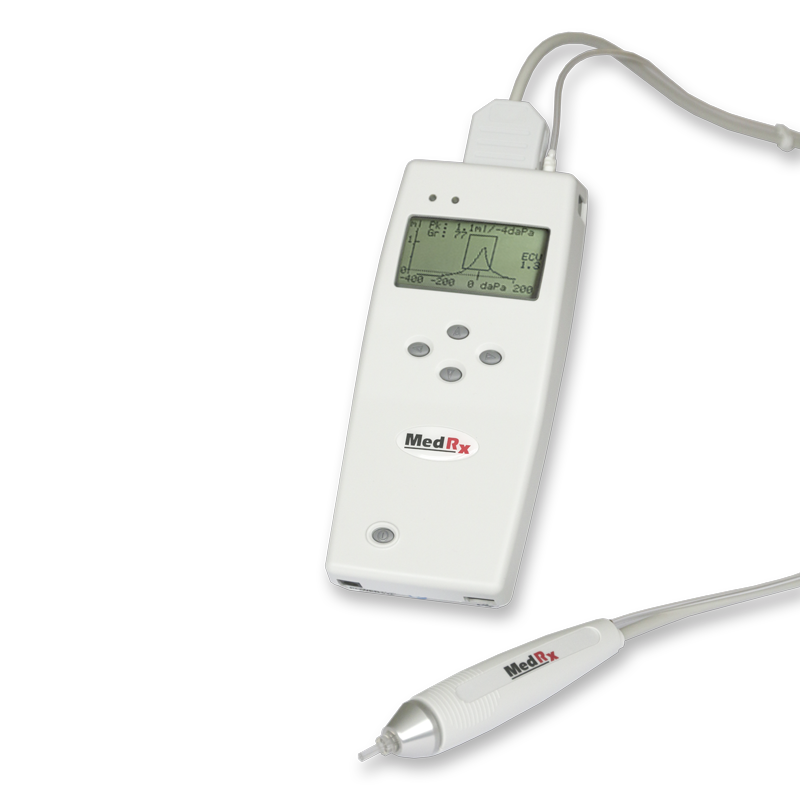

Screening Tympanometer

MedRx Otowave 202 & 202-H

Product Code: 202: 8107578, 202-H: 8108591

There are two versions of the Otowave 202 available:
The standard Otowave 202 provides 226 Hz probe tone impedance measurements together with a user programmable range of both ipsi and contra lateral reflex test measurements at 500 Hz, 1 kHz, 2 kHz and 4 kHz.

The Otowave 202-H option features a comprehensive range of test functions including user defined 226 Hz and 1000 Hz probe tone impedance measurements and a user programmable range of both ipsi and contra lateral reflex test measurements at 500 Hz, 1 kHz, 2 kHz and 4 kHz.

The Otowave 202 provides fast, objective middle ear measurements to assist with the identification of middle ear disorders in neonates, children and adults. When using the Otowave 202 in 226 Hz probe tone mode, the compliance peak, compliance peak pressure, gradient and ear canal volume can be measured within seconds.

Key Features:

  • Ipsi and contra lateral middle ear measurement.
  • Lightweight and portable.
  • External probe, 226 Hz and 1000 Hz (202-H) probe tone.
  • Large, high resolution screen.
  • Data transfer to PC via USB cable.
Enquire

  • Manufacturer


  • Compliance

    • • IEC 60601-1
    • • EMC IEC 60601-1-2
    • • IEC 60645-5 Type 2 Tympanometer ANSI 3.39
    • • CE mark - Complies to EU Medical Device Directive

  • Dimensions

    • W+D+H: 19 cm x 8.5 cm x 4 cm
    • Weight: 430 g (with batteries)
